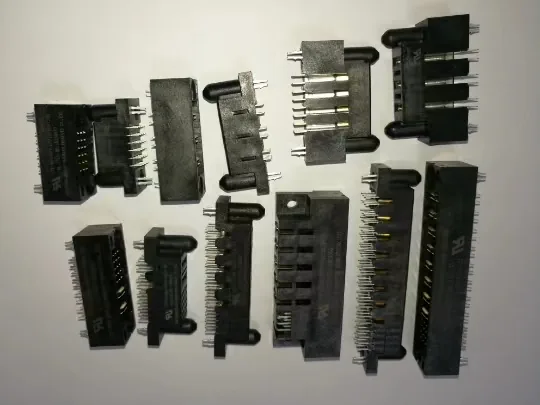

power blade connector / power blade connector JYP-M0810U-RT45R （51939-163LF）/JYP-F0810U-VT45R(51940-752FLF) Workingh Environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/s² Electri Performance Contact Specification Single contact withdrawforce ≥0.2N
| Contact Resistance （mΩ） | Rated Current （A） / Voltage Rating （V） |
|---|---|
| Withstanding Voltage | lnsulation Resistance / 500VDC/1Min |
| 500VDC/1Min | Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) / ≤20mΩ |
| Below 25 pcs,2.5A/pin | 50V / 1000V |
| ≥2000MΩ | 25-48 pcs,1.5A/pin / Over 48pcs,1A/pin |
| Power contacts (5.08mm Pitch) | ≤2mΩ / 40A |
| 250V | 2500V / ≥2000MΩ |
| Power contact (6.35mm Pitch) | 250V / 2500V |
| Power contact (7.62mm Pitch) | 300V / 2500V |
| Power contact (9.525mm Pitch) | 300V / 2500V |
| Technical Performance Contact Type | Contact stability / Single contact insertion force |
| 信号触点 | ≥10N / ≤1N |
| 电源触点 | ≥30N / ≤5N |
| ≥2.2N | Mechanical Life :250 times |
| 工作温度 | -40℃~+125℃（Include 40℃ temperature rising） |
| 相对湿度 | 40℃时，95% |
| 振动 | 20~500Hz， 490m/s² |
| 冲击 | Acceleration 490m/s² |
| 插拔次数 | 250 times |
服务器与 AI 算力电源框、UPS 与分布式供电、通信与数据中心设备、储能系统、充电桩、光伏逆变器、工业配电与医疗仪器。
distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs
Powerblade connector: 51939-669LF 5ACP +24S+5ACP , 24S+10P , right angle, solder to board, Female: VerticalMale: Right anglePower pin's current: 40A/pinSignal pin's current: 2.5A/pin MDL(MEDLON JYP-M2410D-RT45 & JYP-F2410D-VT45R)Hot Tags: b
