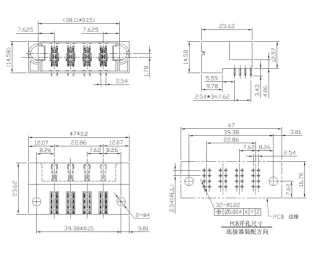

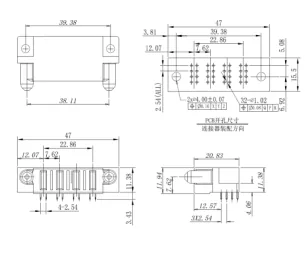

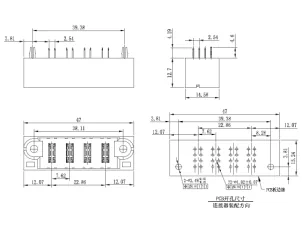

04P 90° RT female ——JYP-F0004D-RT01R(no fixed foot) can be divided into two types with fixed feet and no fixed feet, high power terminal3.43mm 04P - JYP-M0004D-VT01R 180 degrees VT male (with fixed foot) high power terminal 4.19mm, the fixed foot high 4.6mm 04P RT males, JYP-M0004D-RT01R 90 degree angle (no fixed foot) can be divided into fixed and non fixed feet two feet high, power supply terminal 3.43mm Note: 1: the company can make the product with a maximum length of 148mm, and customers can add or reduce the number of power supply by 2 according to the demand. Our company can design and develop products according to the needs of customers, such as shorter welding feet, higher core size and higher rubber content. Classification: Connector series, board to board connector, power connector, round connector Tags: MDL power blade connector ,Amphenol powerblade connector ,：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/s² Electri Performance Contact Specification Single contact withdrawforce ≥0.2N
| Name | Model / Paired model |
|---|---|
| 04P 180° VT female | JYP-F0004D-VT01R / JYP-M0004D-VT01R JYP-M0004D-RT01R |
| 04P 90° RTfemale | JYP-F0004D-RT01R / 04P 180° VT male |
| JYP-M0004D-VT01R | JYP-F0004D-VT01R JYP-F0004D-RT01R / 04P 90° RT male |
| JYP-M0004D-RT01R | Product Description: 4 power terminals, no signal terminals / 04P - JYP-F0004D-VT01R 180 degrees VT female (with fixed foot) high power terminal 3.5mm, the fixed foot high 4.7MM |
| Contact Resistance （mΩ） | Rated Current （A） / Voltage Rating （V） |
| Withstanding Voltage | lnsulation Resistance / 500VDC/1Min |
| 500VDC/1Min | Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) / ≤20mΩ |
| Below 25 pcs,2.5A/pin | 50V / 1000V |
| ≥2000MΩ | 25-48 pcs,1.5A/pin / Over 48pcs,1A/pin |
| Power contacts (5.08mm Pitch) | ≤2mΩ / 40A |
| 250V | 2500V / ≥2000MΩ |
| Power contact (6.35mm Pitch) | 250V / 2500V |
| Power contact (7.62mm Pitch) | 300V / 2500V |
| Power contact (9.525mm Pitch) | 300V / 2500V |
| Technical Performance Contact Type | Contact stability / Single contact insertion force |
| 信号触点 | ≥10N / ≤1N |
| 电源触点 | ≥30N / ≤5N |
| ≥2.2N | Mechanical Life :250 times |
服务器与 AI 算力电源框、UPS 与分布式供电、通信与数据中心设备、储能系统、充电桩、光伏逆变器、工业配电与医疗仪器。
distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs
Powerblade connector: 51939-669LF 5ACP +24S+5ACP , 24S+10P , right angle, solder to board, Female: VerticalMale: Right anglePower pin's current: 40A/pinSignal pin's current: 2.5A/pin MDL(MEDLON JYP-M2410D-RT45 & JYP-F2410D-VT45R)Hot Tags: b
