MDL power blade plus power blade+ connector

Product Overview

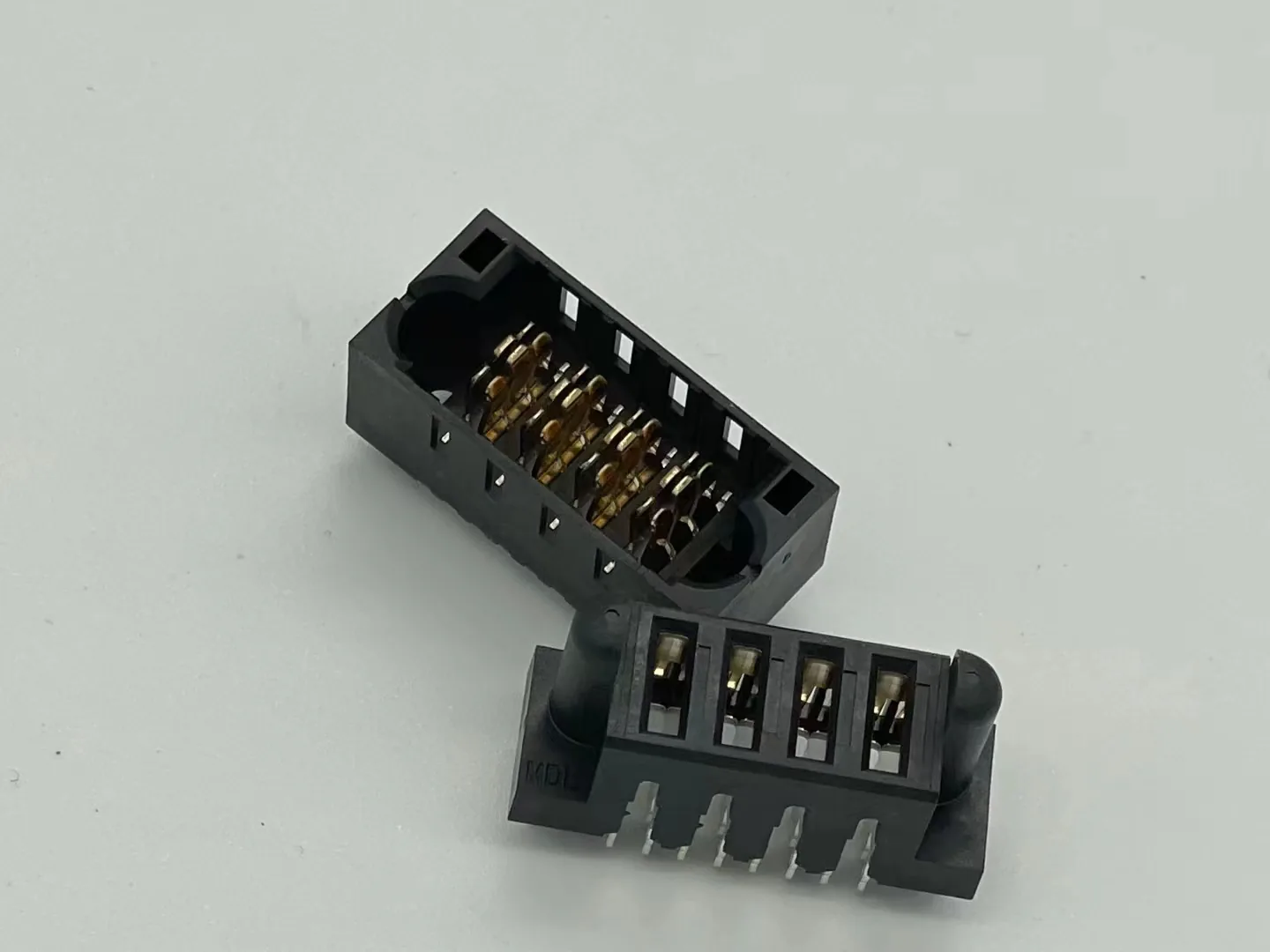

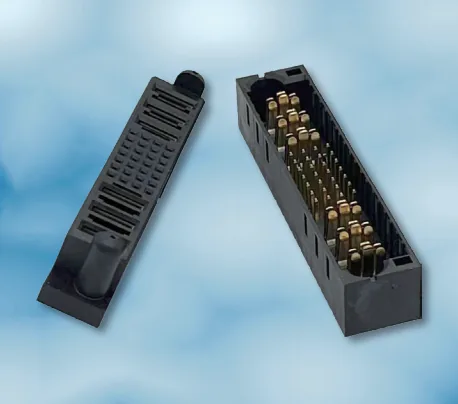

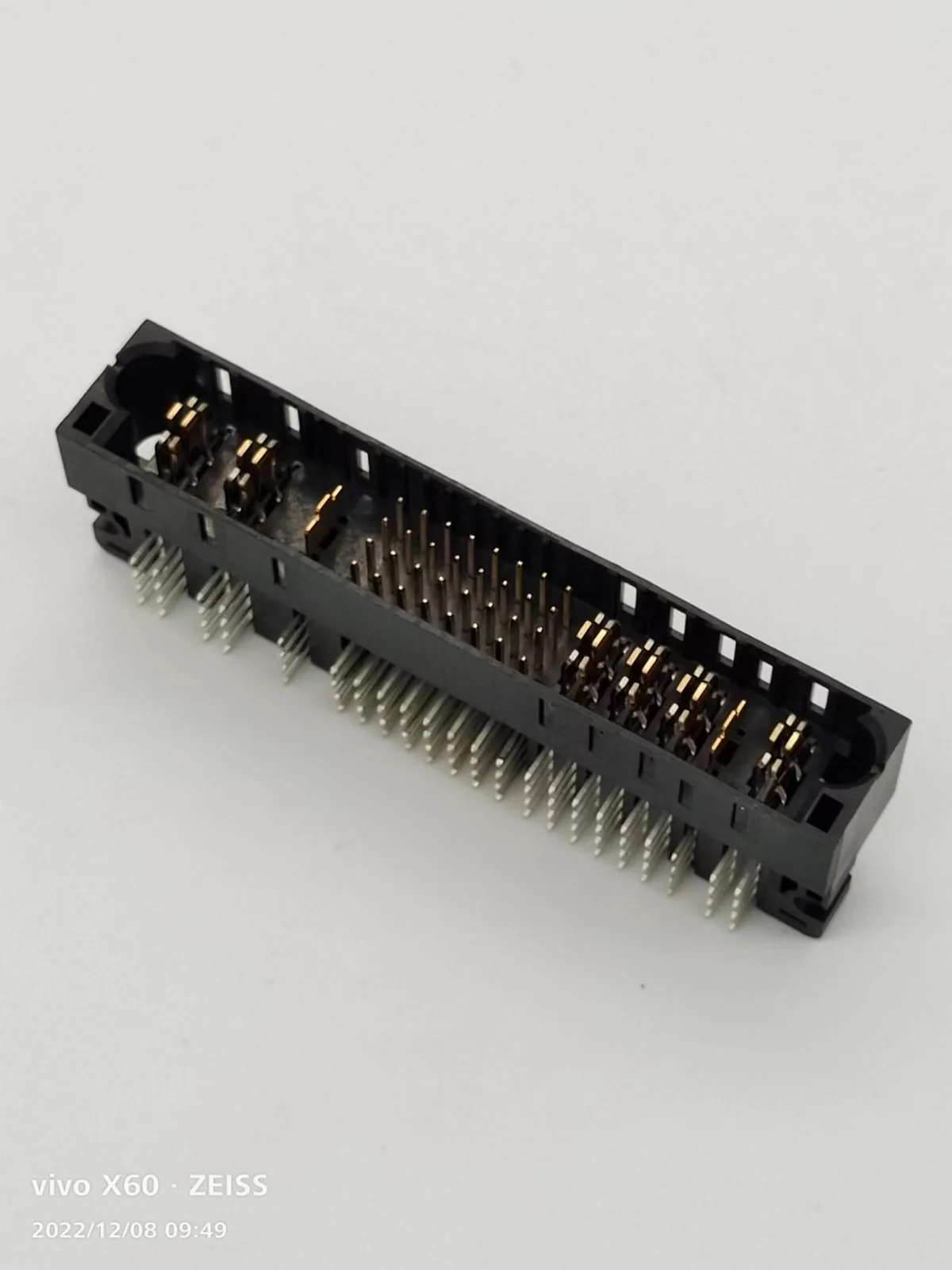

MDL JYP Plus Series Power Module Connector Product Introduction JYPP Series power connector have spring contact, it is integration, small size, high power current conduction capability, contact smoothly, mate with guide position, high connect stabilization. The contact is high performance copper alloy, gold plated at mating area. Housing is high heat-resisting thermoplastic, glass filled, UL94-V0, Black. The contacts include, 6.35mm, 7.62mm, The quantity and sequence of the power and the connector. JYPP series power connector could interchange with FCI PowerBlade Plus series, TYCO Multi-Beam XLE series connector. Product Application JYPP series connector application area is digital communication, internet network etc., It is used in the connection of PCB to PCB of Power module, server, UPS, storage, communication device. Environment Performance Working Temperature：-40℃~+125℃ 度Relative Humidity：40℃时，95% Electric Performance Contact Specification Contact Resistance （mΩ） Rated Current （A） Voltage Rating （AC/DC） Withstand Voltage lnsulation Resistance （2.54mm中心距）(2.54mm Pitch) ≤20mΩ Each PIN 3A 3A Single Contact 88/124V 1000V ≥1000MΩ Below 25 pin 3A Below 25 PINs 25-48 pin 1A PIN No. between 25-48 （5.08mm）(5.08mm Pitch) ≤10-20mΩ 75A Max. 295/417V 2500V ≥1000MΩ （6.35mm）(6.35mm Pitch) 466/659V （7.62mm）(7.62mm Pitch) 645/912V Mechanical Performance Mating/Unmating Force –The force to mate/unmate a receptacle and compatible plug Mating/unmating force Each(Max.) 5N 1N Unmating force (Min.) 2.2N 0.2N The following detail shall apply: 1, Mating head speed – 12.7mm / minute 2， Lubrication – None 3,（Reference EIA-364-13） Durability: 500 times 1,（Maximum cycling rate:500 cycles per hour） 2, （Test reference EIA-364-09） Hot Tags: board to board connector power connector round connector JYP series products are mainly used in power distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs About us Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.

Key Features

• MDL JYP Plus Series Power Module Connector Product Introduction JYPP Series power connector have spring contact, it is integration, small size, high power current conduction capability, contact smoothly, mate with guide position, high connect stabilization.
• The contact is high performance copper alloy, gold plated at mating area.
• Housing is high heat-resisting thermoplastic, glass filled, UL94-V0, Black.
• The contacts include, 6.35mm, 7.62mm, The quantity and sequence of the power and the connector.
• JYPP series power connector could interchange with FCI PowerBlade Plus series, TYCO Multi-Beam XLE series connector.

Technical Specifications

Applications

Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
