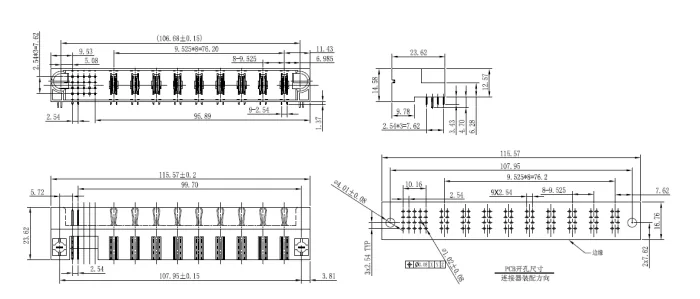

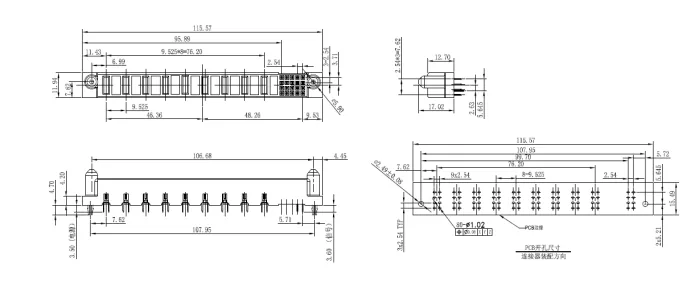

Product Description: 20 signal terminals, 9 power terminals; power terminal pitch 9.525mm, signal terminal pitch 2.54mm 20S+09P - JYP-F2009G-VT01R 180 degrees VT female (with fixed foot); power supply terminal of high 3.5mm, high 3.6mm signal terminals, the fixed foot high 4.7MM 20S+09P 90° RT male - JYP-M2009G-RT01R (with a fixed foot) can be divided into two types with fixed feet and no fixed feet. The power signal terminal is high 3.43mm, and the fixed foot is 4.7MM Note: 1: the product can be used as the most long length 148mm, customers can according to the needs of any number of collocation power terminal and the signal terminal number and empty PIN position 2: the company can according to customer needs, design and development of products (such as: welding feet shorter, heightening the rubber core etc.) Workingh Environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/s² Electri Performance Contact Specification Single contact withdrawforce ≥0.2N
| Name | Model / Paired model |
|---|---|
| 20S+09P 180°VT female | JYP-F2009G-VT01R / JYP-M2009G-RT01R JYP-F2009G-VT01R JYP-M2009G-VT01R JYP-F2009G-RT01R |
| 20S+09P 90° RT male | JYP-M2009G-RT01R / 20S+09P 90° RT female |
| JYP-F2009G-RT01R | 20S+09P 180° VT male / JYP-M2009G-VT01R |
| Contact Resistance （mΩ） | Rated Current （A） / Voltage Rating （V） |
| Withstanding Voltage | lnsulation Resistance / 500VDC/1Min |
| 500VDC/1Min | Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) / ≤20mΩ |
| Below 25 pcs,2.5A/pin | 50V / 1000V |
| ≥2000MΩ | 25-48 pcs,1.5A/pin / Over 48pcs,1A/pin |
| Power contacts (5.08mm Pitch) | ≤2mΩ / 40A |
| 250V | 2500V / ≥2000MΩ |
| Power contact (6.35mm Pitch) | 250V / 2500V |
| Power contact (7.62mm Pitch) | 300V / 2500V |
| Power contact (9.525mm Pitch) | 300V / 2500V |
| Technical Performance Contact Type | Contact stability / Single contact insertion force |
| Signal Contact | ≥10N / ≤1N |
| Power Contact | ≥30N / ≤5N |
| ≥2.2N | Mechanical Life :250 times |
| Operating Temperature | -40℃~+125℃（Include 40℃ temperature rising） |
| Relative Humidity | 40℃时，95% |
| Vibration | 20~500Hz， 490m/s² |
| Shock | Acceleration 490m/s² |
| Mating Cycles | 250 times |
Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
