Product Overview

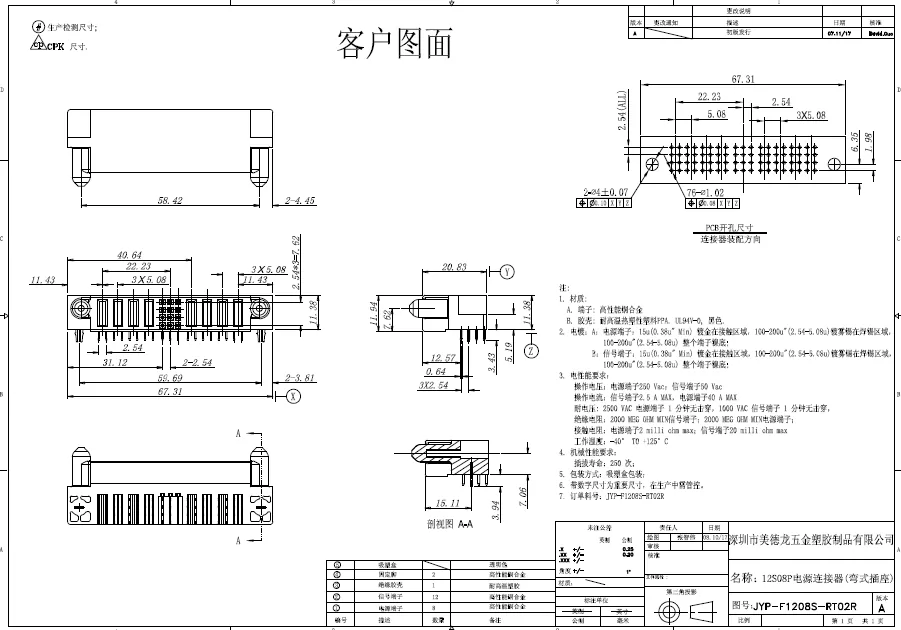

FEATURES & BENEFITS 1. High(up to 50A/contact; 30°C temperature rise in still air) for cost-effective power 2.Delivery in 1U and 2U power supplies or power distribution applications 3.Low(up to 40A/contact; 30°C temperature rise in still air) for applications with multiple voltages and lower power requirements 4. Highly vented housing design maximizes heat dissipation for effective system cooling 5. Half-bullet guides offer a reduced connector footprint 6. Large operating temperature range (-40°C to +125°C)for extreme environments 7. Right angle and co-planar options are available with bothol 8. Number and placement of power andr press-fit tails are available for termination flexibility 10.Compatible with lead-free processing temperatures TARGET MARKETS/APPLICATIONS 1. AC/DC pluggable power supplies in data, telecom & datacom/networking equipment 2. Industrial PCs 3. Industrial controls & instrumentation 4. Medical equimpent TECHNICAL INFORMATION MATERIALS 1.Housing : PPA+15% glassfiber, UL 94-0 2. High-temperature thermoplastic (UL 94 V-0), black 3.sh: Separable interface: 30μin. (0.76μm) performance –based plating over nickel Contact A: Phosphor Bronze; Gold plating over Nickel on contact area;Tin Plating on Solder Tail. Contact B: Brass; Gold plating over Nickel on contact area Tin Plating on Solder Tail. 6. Board connector solder tail area: Matte tin over nickel Shell: Brass;Tin Plating on Solder Tail. ELECTRICAL PERFORMANCE 1. High power current rating: Up to 50A/contact (30°C T-rise in still air) 2. Low power current rating: Up to 40A/contact (30°C T-rise in still air) 3. Operating Voltage • High: 912V max. (fully loaded) • Low power/: 124V max. (fully loaded) • Dielectric withstanding voltage • High: 2500V • Low power/: 1000V 4. Insulation resistance • High/low: > 2,000MΩ initially as well as after environmental exposure •: > 500MΩ initially as well as after environmental exposure 5. Contact resistance • High: ≤0.7mΩ initially and after environmental exposure • Low: ≤1.5mΩ initially and after environmental exposure •: ≤20mΩ initially and after Environmental Operating Temperature: -55°C to +105°C Product Application JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc. workingh environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/ s² Electri Performance Contact Specification Contact Resistance （mΩ） Rated Current （A） Voltage Rating （V） Withstand Voltage lnsulation Resistance 500VDC/1Min 500VDC/1Min（2.54mm pitch）(2.54mm Pitch) ≤20mΩ Below 25 pcs,2.5A/pin 50V 1000V ≥2000MΩ 25-48 pcs,1.5A/pin Over 48pcs,1A/pin(5.08mm Pitch) ≤2mΩ 40A 250V 2500V ≥2000MΩ(6.35mm Pitch) 250V 2500V(7.62mm Pitch) 300V 2500V(9.525mm Pitch) 300V 2500V Technical Performance Contact Type Contact stability Single contact insertion force Single contact withdraw force≥10N ≤1N ≥0.2N≥30N ≤5N ≥2.2N Mechanical Life :250 times
Applications
Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
