power blade connector powerblade connector signal connector FCI/Tyco/Molex replacement connector

Product Overview

Product Application JYP series connector application area is digital communication, internet network etc., It is used in the connection of PCB to PCB of Power module, server, UPS, storage, communication device. workingh environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rise） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock：Acceleration490m/ s² JYP series products are mainly used in power distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs About us Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds. Part No. system: JYF Product Application Contact Pitch is 2.54mm, contact tail: through hole, mating with 1.60±0.20mm thickness PCB gold finger, used in the PCB connection of communications equipment, precision instrument，computer etc. Work environment Operating Temperature ：-55℃~+125℃（Include 40℃ temperature rise） Relative Humidity ：40℃，90-95% Air pressure ：40KPa Vibration：10~500Hz， 100m/s² Shock： Acceleration300m/ s² Mian Technical Parameters Rated Current：3A（20℃） Contact Resistance：≤25mΩ lnsulation Resistance：≥1000MΩ Voltage Rating ：300V AC Withstand Voltage：750V Mechanical Life：500 times Insertion Force Per Pin ≤2N withdraw force Per PIN≥1.2N Part Number System JYF –XX YY VT -001 sequence number contact solder type Vertical through hole type Right angle through hole type Quantity of contacts Quantity of Pin hole in housing Printed gold finger connector Current JYF Model list: JYF 10 PIN JYF 26 PIN JYF 44 PIN JYF 70 PIN JYF 12 PIN JYF 28 PIN JYF 50 PIN JYF 72 PIN JYF 14 PIN JYF 30 PIN JYP 52 PIN JYF 16 PIN JYF 32 PIN JYF 54 PIN JYF 20 PIN JYF 34 PIN JYF 60 PIN JYF 22 PIN JYF 36 PIN JYF 62 PIN JYF 24 PIN JYF 40 PIN JYF 64 PIN

Key Features

• Product Application JYP series connector application area is digital communication, internet network etc., It is used in the connection of PCB to PCB of Power module, server, UPS, storage, communication device.
• workingh environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rise） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock：Acceleration490m/ s² JYP series products are mainly used in power distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc.

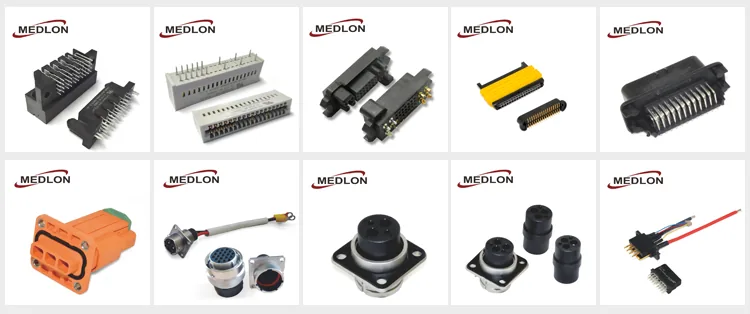

• More Products We are doing the OEM & ODM Connectors based on customers' needs About us Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006.
• It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector.
• The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds.

Applications

Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
