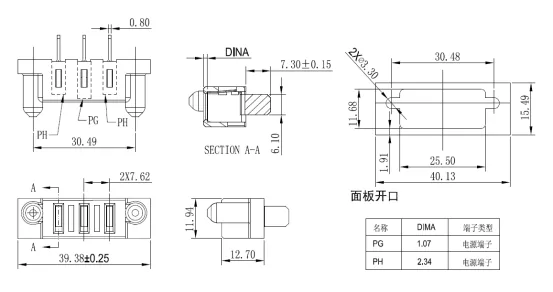

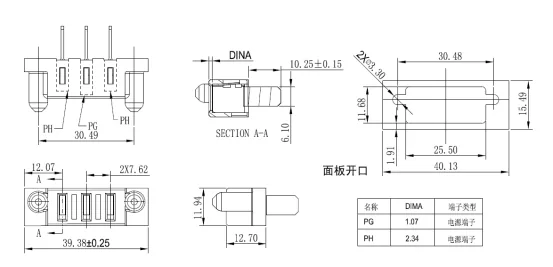

03P - JYP-F0003D-VL01R VL 180 degrees Vertical femail (no fixed foot) power supply terminal 10.25mm 03P - JYP-F0003D-VL11R VL 180 degrees Vertical femail (no fixed foot) power supply terminal 7.30mm Note: 1: our company has only developed vertical welding line at the present time. The product can be made up to 148mm long and customers can match 2 according to their needs: our company can design and develop products according to customer needs, such as shorter welding pins, higher core and higher quality. Classification: board to board connector, power connector, round connector Tags: About Medlon，More connector products Workingh Environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/s² Electri Performance Contact Specification Single contact withdrawforce ≥0.2N
| Name | Model / Paired model |
|---|---|
| 03P 180° Vertical Female VL | JYP-F0003D-VL01R / The direct and RT male of the corresponding PIN number |
| 03P 180°Straight Female VL | JYP-F0003D-VL11R / Product Description: 3 terminal terminals without signal terminals |
| Contact Resistance （mΩ） | Rated Current （A） / Voltage Rating （V） |
| Withstanding Voltage | lnsulation Resistance / 500VDC/1Min |
| 500VDC/1Min | Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) / ≤20mΩ |
| Below 25 pcs,2.5A/pin | 50V / 1000V |
| ≥2000MΩ | 25-48 pcs,1.5A/pin / Over 48pcs,1A/pin |
| Power contacts (5.08mm Pitch) | ≤2mΩ / 40A |
| 250V | 2500V / ≥2000MΩ |
| Power contact (6.35mm Pitch) | 250V / 2500V |
| Power contact (7.62mm Pitch) | 300V / 2500V |
| Power contact (9.525mm Pitch) | 300V / 2500V |
| Technical Performance Contact Type | Contact stability / Single contact insertion force |
| Signal Contact | ≥10N / ≤1N |
| Power Contact | ≥30N / ≤5N |
| ≥2.2N | Mechanical Life :250 times |
| Operating Temperature | -40℃~+125℃（Include 40℃ temperature rising） |
| Relative Humidity | 40℃时，95% |
| Vibration | 20~500Hz， 490m/s² |
| Shock | Acceleration 490m/s² |
| Mating Cycles | 250 times |
Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs
