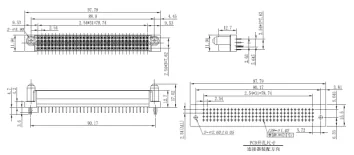

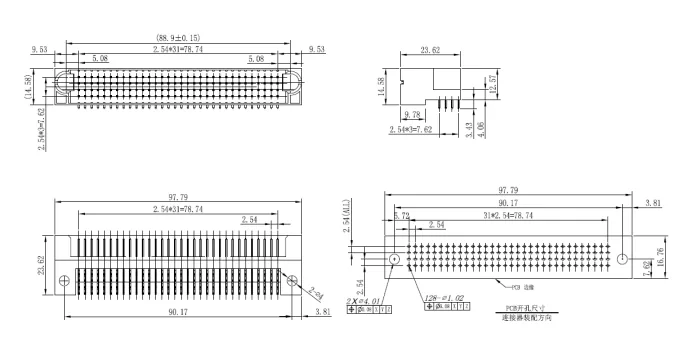

128S 180° RT female ——JYP-F12800-RT01R(no fixed foot) can be divided into two types with fixed feet and no fixed feet, and high signal terminals3.43mm 128S male - JYP-M12800-RT01R 90 degree angle (no fixed foot) can be divided into fixed and non fixed feet two feet high, the signal terminal 3.43mm Note: 1: our company can make the product with a maximum length of 148mm, and customers can add or reduce the number of signals according to the demand: 2: our company can design and develop products according to customer needs, such as shorter welding pins, higher core size and higher quality. Classification: board to board connector, power connector, round connector Tags: About Medlon，More connector products Workingh Environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/s² Electri Performance Contact Specification Single contact withdrawforce ≥0.2N
| Name | Model / Paired model |
|---|---|
| 128S 180° VT female | JYP-F12800-VT01R / JYP-M12800-RT01R JYP-M12800-VT01R |
| 128S 90° RT female | JYP-F12800-RT01R / 128S 180° VT male |
| JYP-M12800-VT01R | JYP-F12800-VT01R JYP-F12800-RT01R / 128S 90° RT male |
| Contact Resistance （mΩ） | Rated Current （A） / Voltage Rating （V） |
| Withstanding Voltage | lnsulation Resistance / 500VDC/1Min |
| 500VDC/1Min | Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) / ≤20mΩ |
| Below 25 pcs,2.5A/pin | 50V / 1000V |
| ≥2000MΩ | 25-48 pcs,1.5A/pin / Over 48pcs,1A/pin |
| Power contacts (5.08mm Pitch) | ≤2mΩ / 40A |
| 250V | 2500V / ≥2000MΩ |
| Power contact (6.35mm Pitch) | 250V / 2500V |
| Power contact (7.62mm Pitch) | 300V / 2500V |
| Power contact (9.525mm Pitch) | 300V / 2500V |
| Technical Performance Contact Type | Contact stability / Single contact insertion force |
| Signal Contact | ≥10N / ≤1N |
| Power Contact | ≥30N / ≤5N |
| ≥2.2N | Mechanical Life :250 times |
Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs
Powerblade connector: 51939-669LF 5ACP +24S+5ACP , 24S+10P , right angle, solder to board, Female: VerticalMale: Right anglePower pin's current: 40A/pinSignal pin's current: 2.5A/pin MDL(MEDLON JYP-M2410D-RT45 & JYP-F2410D-VT45R)Hot Tags: b
