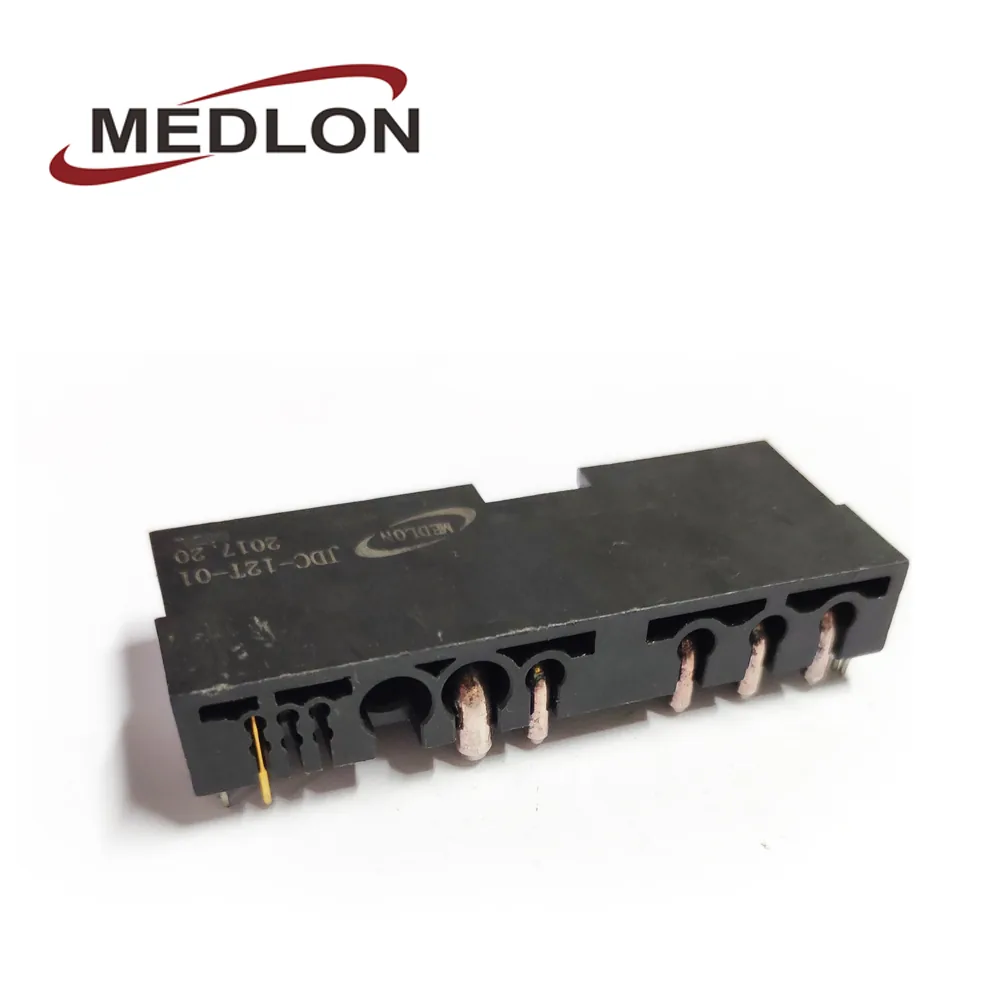

JDC series 12 Pin Connector Power Connector Product Information -40℃ ~ +125℃ Product Applications 1. Intelligence high frequency switching power supply, communication power supply, electric power,railway power supply,LED power. 2. UPS systems 3. Contravariant power 4. Drawer low-voltage cabinet etc. More Products We are doing the OEM & ODM Connectors based on customers' needs About us Shenzhen Medlon Hardware Product Co.,Ltd & Dongguan Meixinlong Hardware Products Co.,Ltd was founded in 2006. It is a high-tech private enterprise that focused on desiging,manufacturing and selling connectors, such as EV AC/DC Charger, power module connector, high desity connector, and mobile phone connector. The company’s poducts are widely used in communications power supply, electric power supply , UPS power supply, server, medical , mobile phones and other fileds. Transportation & Payment BACK HOME

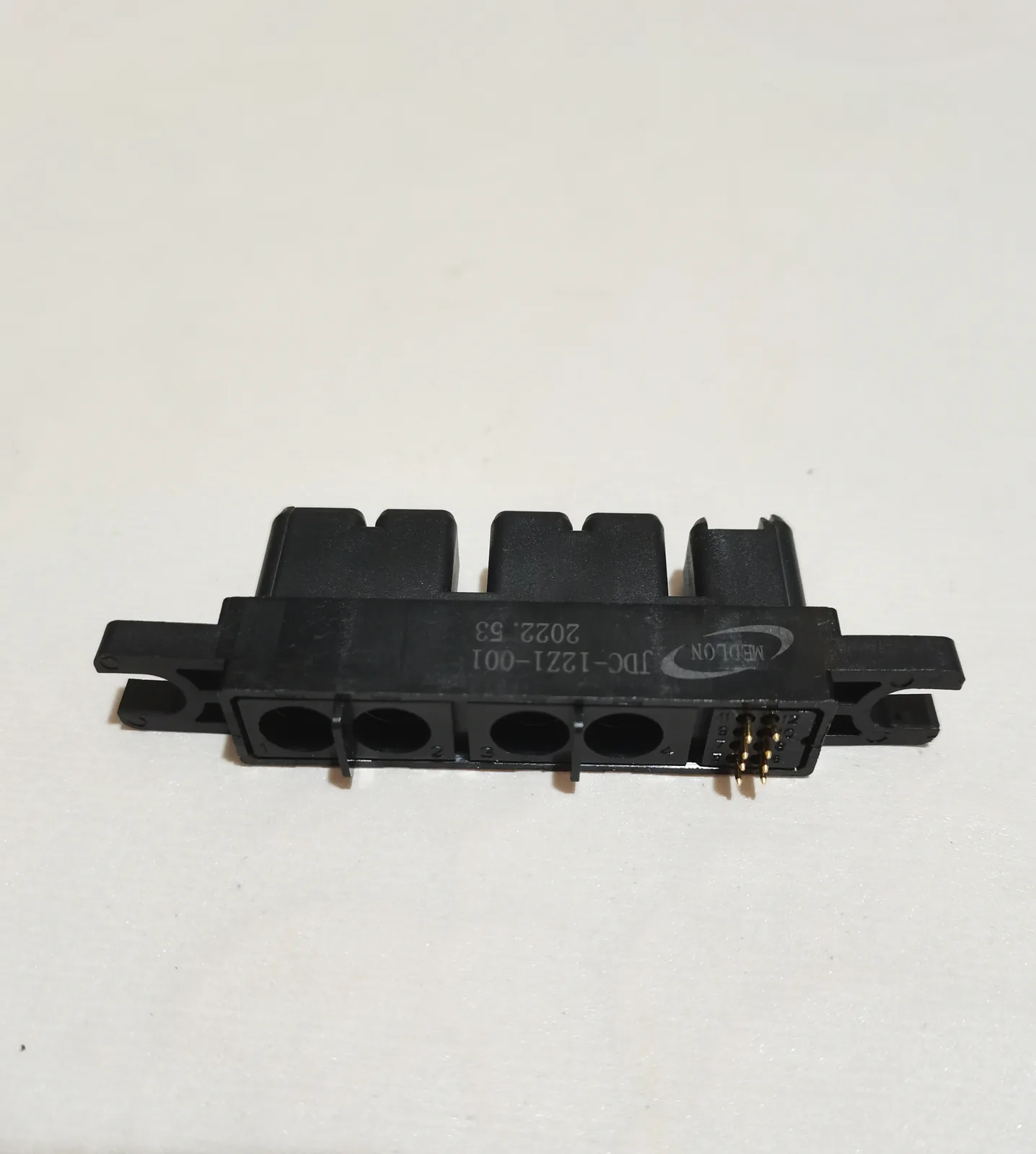

| Product model | JDC-12Z-01 Female Connector |
|---|---|
| Mating Cycles | 500 times |
| Insulation Resistance | ≥3000MΩ (normal temperature) ; ≥100MΩ (damp and hot) / Housing Material |
| PET UL94V-0 Black | Contact / Spec |
| 22# | 8# |
| Number of Contacts | 8 / 4 |
| Rated Current | 3A / 95A |
| Rated Voltage | 500V DC / 480V DC |
| Contact Resistance | ≤13mΩ / ≤1mΩ |
| Withstanding Voltage | 500V AC / 1500V DC |
| Surface Finish | Gold plated over nickel / Silver plated over nickel |
| Terminal Style | Sockets: Crimping (Y); 8# Socket: Screw thread ; Pins: PCB Tail(B) |
| Material | Pin,Jack / Brass or copper alloy |
| Crown Spring | Beryllium bronze / Working Temperature |
Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
