Product Overview

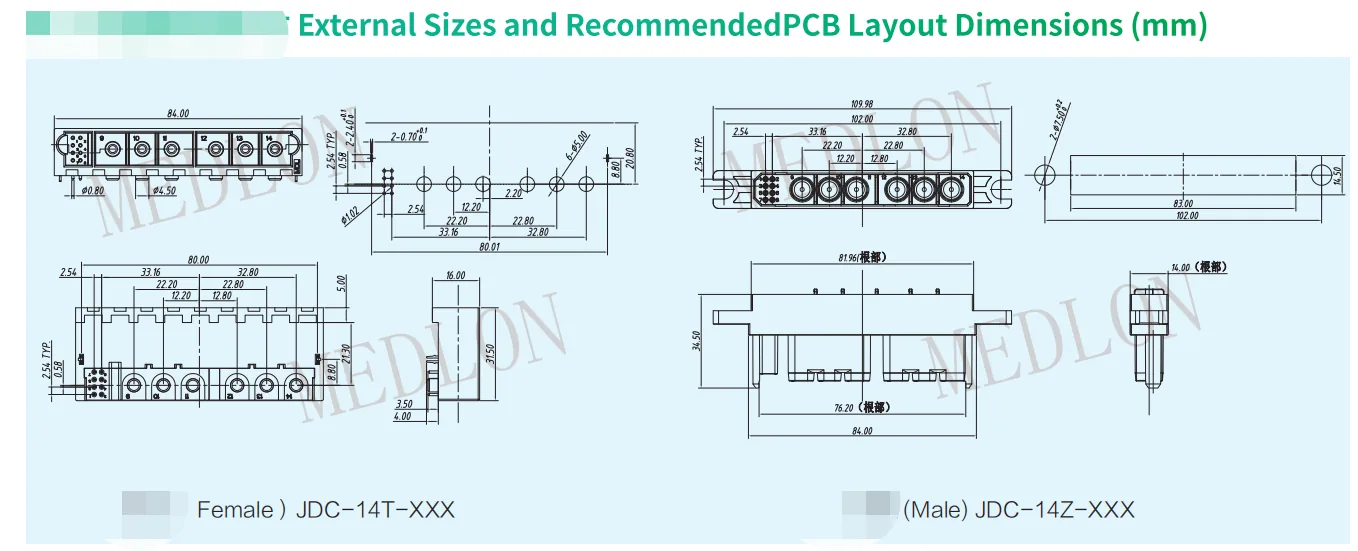

Φ High current 14 Pin (8S+6P) 70A 1000V AC Drawer Type AC Charging Pile Module Connector board to board connector Product Information Main Technical Parameters Product Model: JDC-14T-001 & JDC-14Z-001 Gender: Male and Female Mechanical Life: 200 times Spec: Φ5 for power, 22# for singal Rated Current: φ5 70A (6 pin for power); 3A (22# 8 pin for signal) Rated Voltage : 1000V AC for power Withstand Voltage: 2000V AC (Normal), 22# 1000V AC; Insulation Resistance: ≥3000MΩ (Normal) Contact Resistance: ≤1mΩ for power;≤8mΩ for signal Surface Finish: Plated Silver or Gold Materials Housing Material: PET , UL94V-0, Black Pin and Jack: Brass Crown Spring: Beryllium bronze Operating Environment Operating Temperature: -40 to 125℃ JDC-14Z-001 board to board connector

Key Features

• Φ High current 14 Pin (8S+6P) 70A 1000V AC Drawer Type AC Charging Pile Module Connector board to board connector Product Information Main Technical Parameters Product Model: JDC-14T-001 & JDC-14Z-001 Gender: Male and Female Mechanical Life: 200 times Spec: Φ5 for power, 22# for singal Rated Current: φ5 70A (6 pin for power);
• 3A (22# 8 pin for signal) Rated Voltage : 1000V AC for power Withstand Voltage: 2000V AC (Normal), 22# 1000V AC;
• Insulation Resistance: ≥3000MΩ (Normal) Contact Resistance: ≤1mΩ for power;≤8mΩ for signal Surface Finish: Plated Silver or Gold Materials Housing Material: PET , UL94V-0, Black Pin and Jack: Brass Crown Spring: Beryllium bronze Operating Environment Operating Temperature: -40 to 125℃ JDC-14Z-001 board to board connector

Applications

Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
